INDUSTRY CASTING SOLUTIONS
Wear-resistant and heavy-duty cast components for crushers, mills and quarry equipment. Start with the machine model, part reference, drawing or service conditions.
Crusher equipment + jaw plates, liners and heavy-duty cast components
01 / FEATURED CAST COMPONENTS
Product cards connect the industry use case to an existing product route or a focused RFQ discussion.
02 / PRODUCT CATEGORIES
Product categories organize the search around the function and equipment interface instead of a random list of products.
Wear and structural components that define the crushing chamber and machine interfaces.
Replaceable components for abrasive material flow and impact zones.
Supporting castings for heavy mining machinery and material-handling systems.
03 / TYPICAL APPLICATIONS
Use the equipment or system closest to your project to find a focused starting point.
Jaw plates and related castings for the primary crushing stage and replacement cycles.

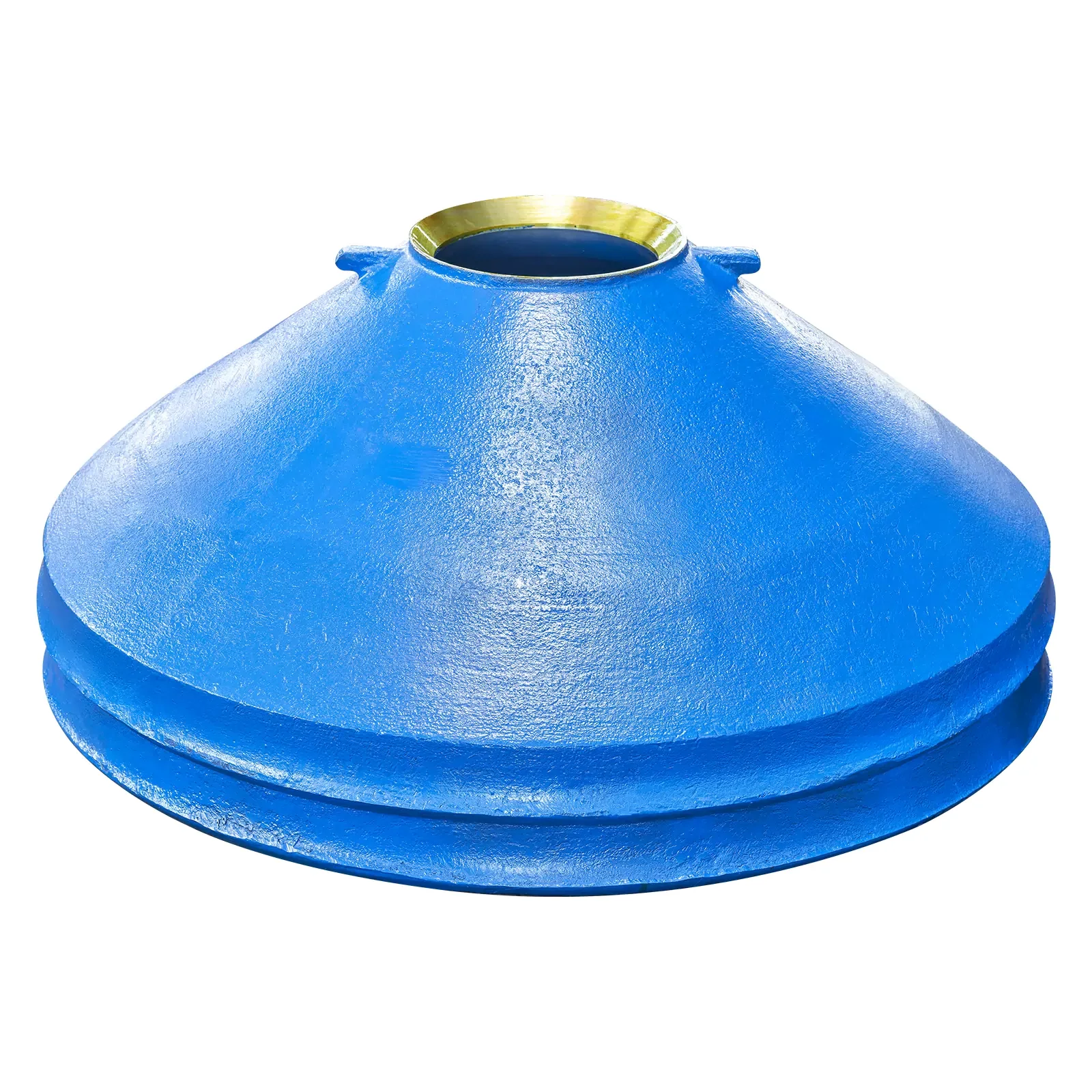

Liners and housings for crushing systems where wear pattern and fit are important.
Impact-facing components selected around material, impact conditions and service expectations.

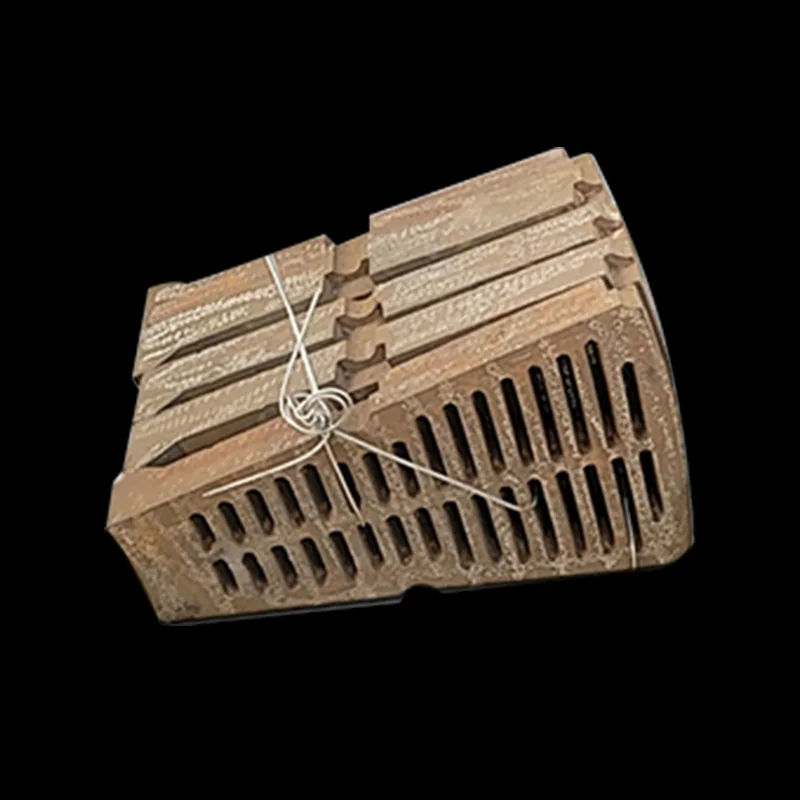

Cast parts for abrasive material handling, support and rotating assemblies.
04 / MATERIALS FOR THIS INDUSTRY
Material families shown here are starting points. Exact grades, treatment and documentation are confirmed against the customer specification.
A wear-focused material option for selected crusher and impact components where work-hardening behavior is relevant.
Typical applicationsJaw plates · Mantles · ConcavesA material family to discuss for selected high-abrasion components after service conditions and confirmed supply scope are reviewed.
Typical applicationsLiners · Impact wear partsA flexible option for wear and structural castings where impact, toughness and heat treatment need to be balanced.
Typical applicationsHammer heads · Crusher parts · Structural castingsUsed for selected housings and support components where strength, machinability and cost efficiency are required.
Typical applicationsBearing housings · Covers · Support castings05 / RECOMMENDED CASTING PROCESSES
Only processes relevant to this industry are shown. Final selection depends on geometry, material, quantity and required quality.
Medium to large wear and structural castings
Complex mining castings and integrated geometry
Smaller complex components
06 / CUSTOM CASTING CAPABILITIES
Send the information already available. The team can then confirm the manufacturing route, missing inputs and the useful basis for quotation.
Review drawing revisions, critical dimensions and the information needed for a manufacturable route.
Use available 3D data to discuss geometry, tooling and machining references.
Start with a sample, photo or equipment reference when a drawing is not yet available.
Confirm material, hardness and application requirements before quotation.
Match product references, fitment and customer identification requirements.
Align tooling, sample review and repeat production around the confirmed project scope.
07 / MACHINING & SECONDARY OPERATIONS
Secondary operations are reviewed according to the drawing, application and agreed delivery condition.
Process and material selection starts from the component geometry and application.
→Application-matched heat treatment is discussed where the confirmed material and part require it.
→Machining requirements, datum references and fit-critical dimensions are reviewed with the drawing.
→Cleaning, shot blasting and other finishing requirements are confirmed per part.
→The inspection plan is aligned with material, geometry, application and customer requirements.
→Identification and packing are agreed around part protection, labeling and shipment requirements.
08 / QUALITY & INSPECTION
Inspection methods and records are selected according to the confirmed customer specification. The listed checks are discussion points, not blanket claims for every part.
Material grade and required documentation are checked against the agreed specification.
Hardness requirements are confirmed for parts where wear or fit performance depends on them.
Critical dimensions, interfaces and machining references are checked against the drawing.
Surface condition, casting appearance and finishing requirements are reviewed before packing.
09 / HOW WE MANUFACTURE YOUR CASTINGS
Melting, molding, pouring, finishing, machining and inspection are connected into a project-specific route.
11 / FAQ

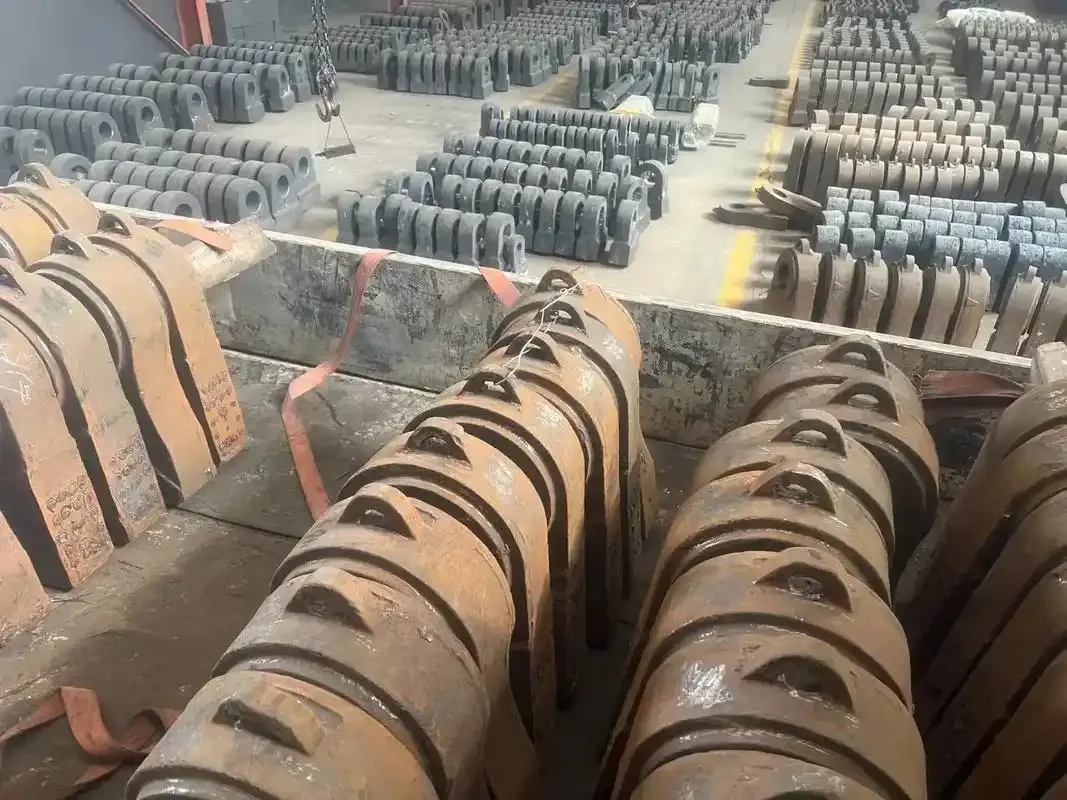

The project scope can include jaw plates, crusher liners, hammer heads, blow bars, wear plates, housings and other drawing-based wear components.
Yes, jaw crusher plates, cone crusher liners and mill or hammer-related wear parts are included in the existing product scope. Confirm the machine model and part reference for review.
High-manganese steel, high-chromium cast iron and alloy steel can be discussed according to abrasion, impact, section size and the intended service conditions.
Share the available drawing, model or sample so the part size, casting route, tooling and inspection requirements can be reviewed together.
Yes. Customer drawings, 3D models, samples and equipment references can all be used to establish the quotation basis.
Hardness, material requirements and dimensional checks are aligned with the confirmed inspection plan for the part.
Application-matched heat treatment can be included where it is part of the confirmed material and product requirement.
REQUEST A QUOTE
Send us your drawing, material requirement, quantity and application. Our team will review the project and recommend a suitable manufacturing route.
